Siemens iQ500 Built In Gas Hob 90cm |EC9B5QI90M

General Information

• Product type: Gas hob with integrated controls

• Installation type: Built-in

• Type of heating: Gas

• Total number of burners: 5

• Control panel location: Front

• Residual heat indicator: No

Design

• Surface material: Stainless steel

• Surface color: Stainless steel

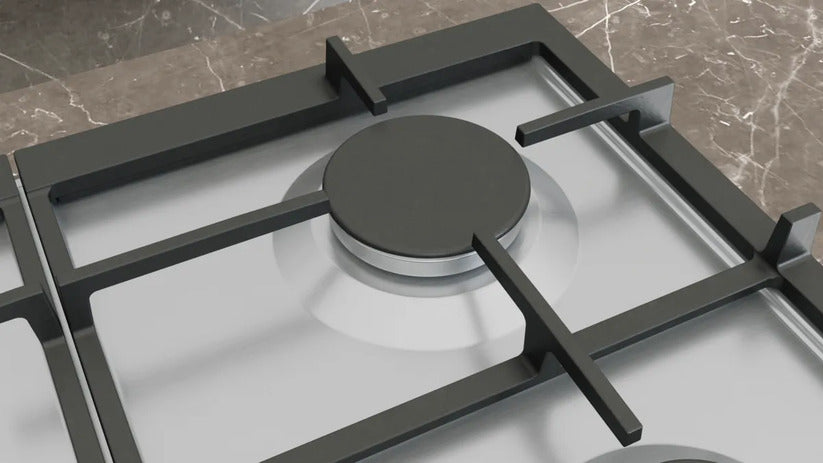

• Pan supports: Elongated cast iron pan supports

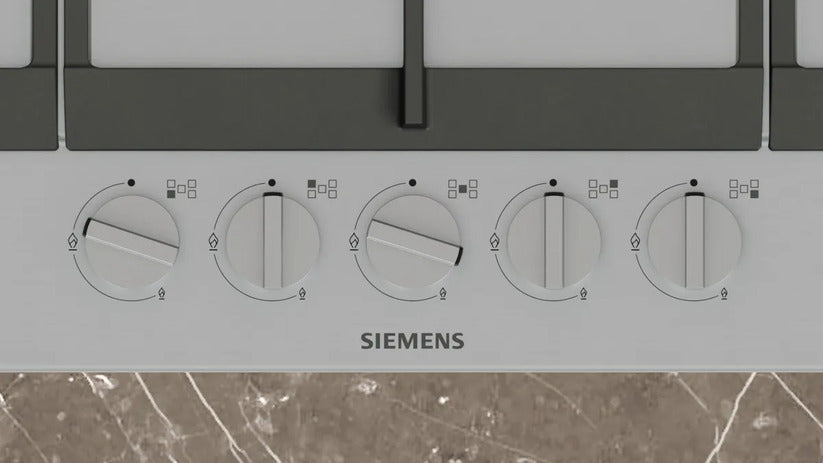

• Knob material: Full metal

• Knob design: Sword knobs with strong grip for easy and precise control

Usage Convenience

• Front-mounted controls: Easy access and comfortable operation

• One-hand ignition: Push and turn the knob to ignite the flame

• Detachable parts: Easy cleaning around knobs and burners

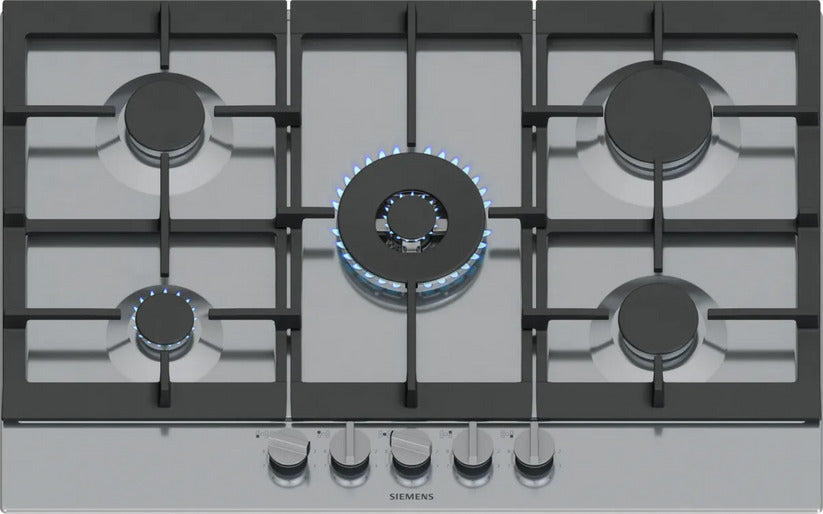

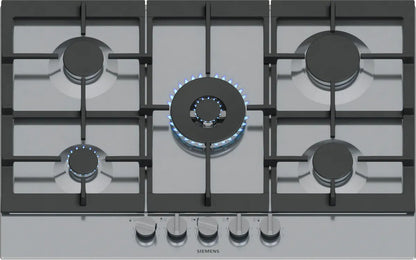

Burners & Power Output

• Left front: Economy burner – up to 1.0 kW

• Left rear: Standard burner – up to 1.75 kW

• Center front: WOK burner – up to 4.0 kW

• Right rear: Rapid burner – up to 3.0 kW

• Right front: Standard burner – up to 1.75 kW

• Total gas connection rating: 11.5 kW

(Power may vary depending on gas type)

Safety

• Full flame safety device: Automatically stops gas flow if the flame goes out

Installation & Technical Details

• Gas type preset: Liquid gas G30/G31 (28–30 / 37 mbar)

• Certified gas types: Natural gas H/E/(L) – 20 (25) mbar

• Nozzle set: Natural gas nozzles included

• Other gas nozzles: Available via customer service

• Minimum worktop thickness: 20 mm

Electrical Details

• Voltage: 220–240 V

• Frequency: 50 / 60 Hz

• Fuse protection: 3 A

• Electrical supply cord length: 100 cm

• Plug type: GB plug

• Connection rating: 1 W

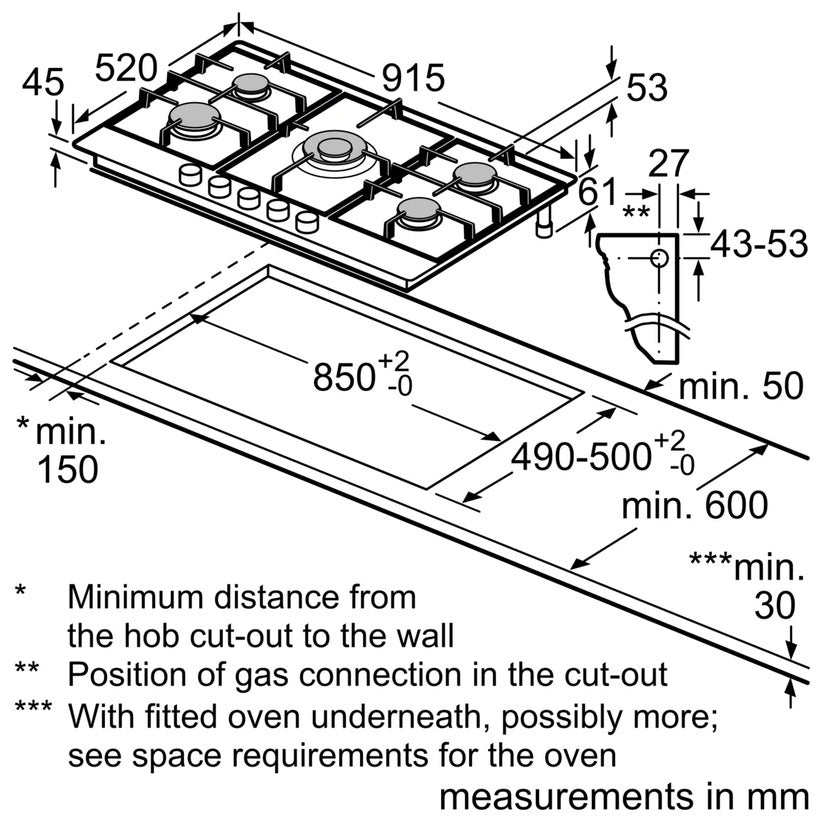

Dimensions & Weight

• Appliance dimensions (HxWxD): 45 × 915 × 520 mm

• Product dimensions (overall): 51.5 × 915 × 520 mm

• Required niche size (HxWxD): 45 × 850 × (490–500) mm

• Width of appliance: 915 mm

• Net weight: 15.4 kg (34 lbs)

• Gross weight: 17.9 kg (39 lbs)

Packaging Dimensions

• Packed product (HxWxD): 170 × 1110 × 660 mm

• Packed dimensions (inches): 6.69 × 43.70 × 25.98 in
