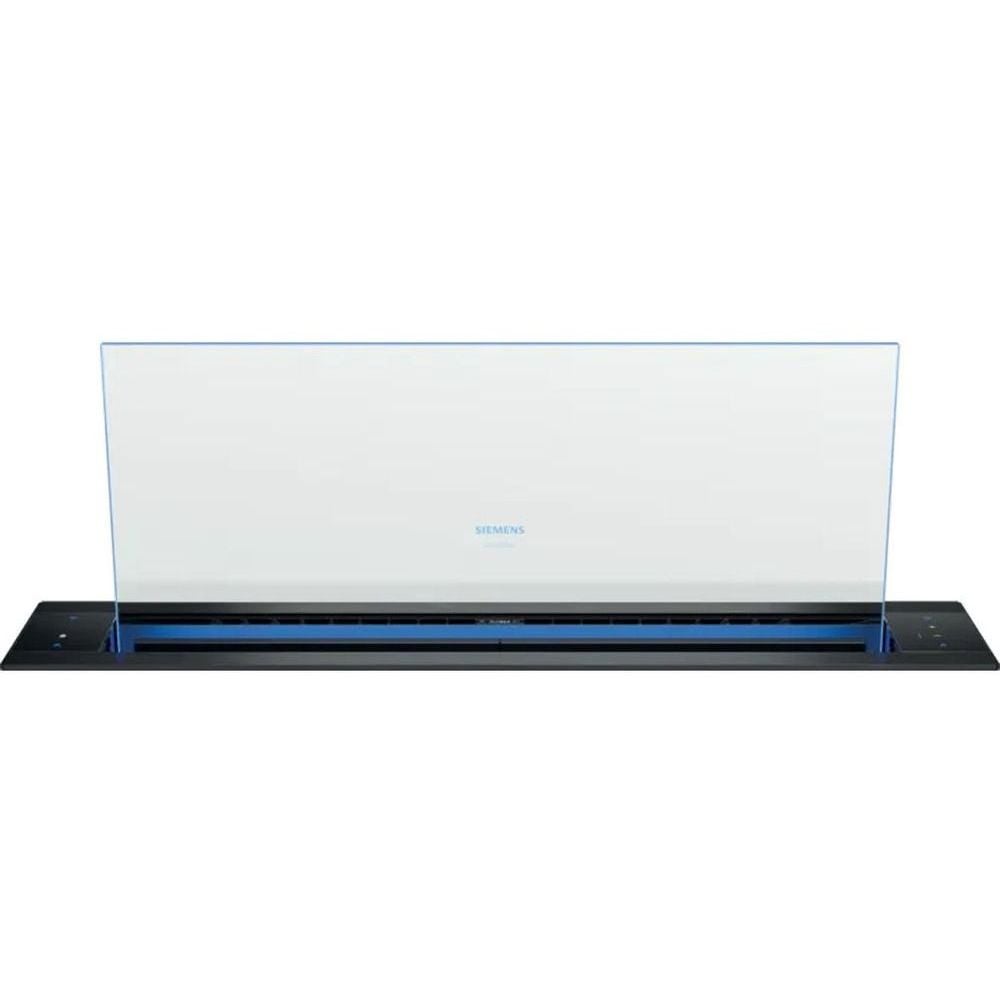

Siemens Downdraft hood 80 cm clear glass, Black |LD88WMM66B

✓ Excellent extraction performance from all cooking zones –
powered by iQdrive and Guided Air technology.
✓ Space saving installation — for optimal use of space.
✓ emotionLight Pro – Highlight your hood with fully dimmable LED
lights in a range of colours.
✓ iQdrive motor - The quiet, high-performance motor ensures
efficient removal of odours and steam.
✓ cookConnect – Use your hob to control your extractor hood’s
power level and lighting.

Connectivity
• Home Connect: Remote Monitoring and Control for connected home
appliances and operation via smartphone or tablet (only in countries
where Home Connect service is available)
• The Home Connect functionality can be extended by integrating
numerous applications from external cooperation partners
(partnerships)
• Voice Control enabled via popular voice assistants (only in countries
where this service is available)
• Interval function: available via Home Connect
• Silence function: available via Home Connect
Variant
• 80 cm wide
• Energy Efficiency Class: A (at a range of energy efficiency classes
from A+++ to D)
• Extraction rate exhaust air according to EN 61591:
• max. normal use501 m³/h, intensive 775 m³/h
• Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
Features
• Fully automatic hood
• cookConnect hob based hood control
• climateControl Sensor
• Additional functions: Ambient light RGB
• 3 power levels and 2 intensive settings

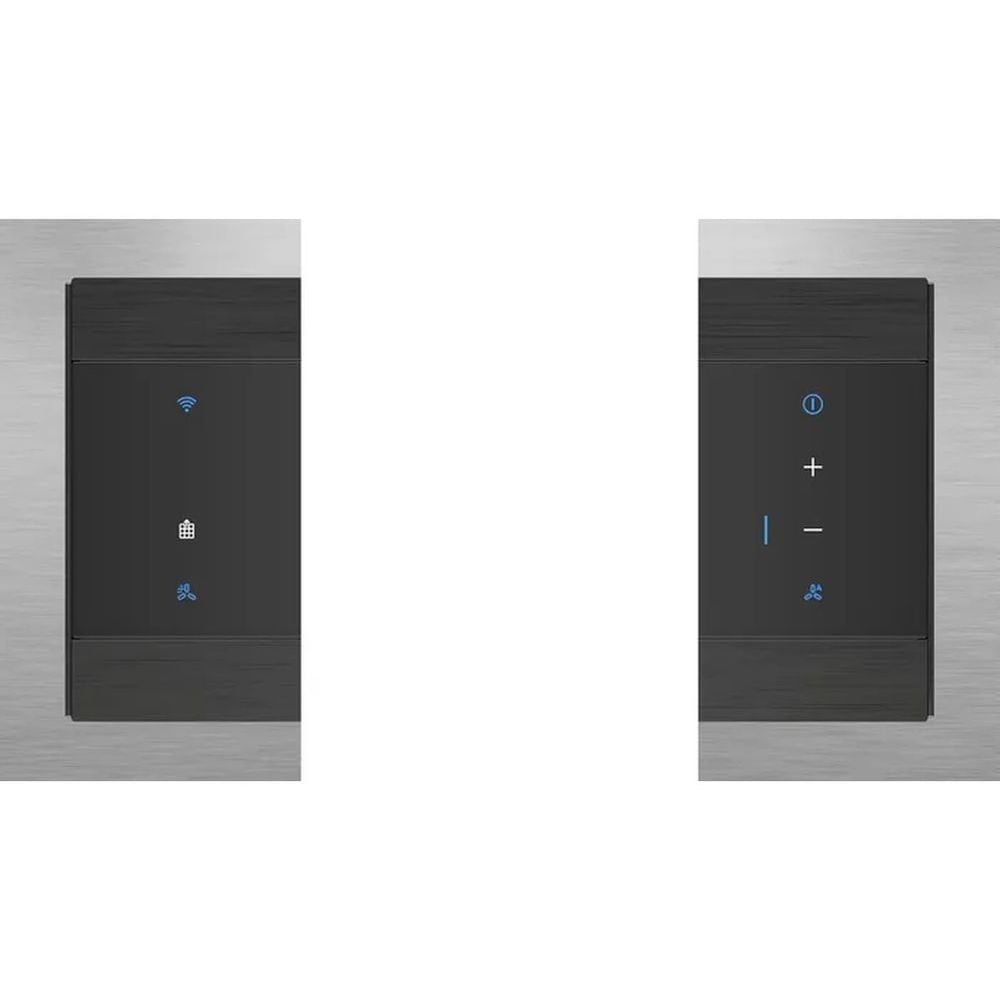

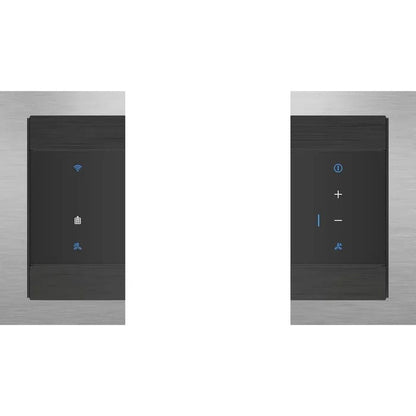

• touchControl
• The standard functions are located on the right-hand user interface
• Efficient BLDC motor
• Automatic intensive revert (6mins)
• Automatic after running (Automatic after running (10 minutes))

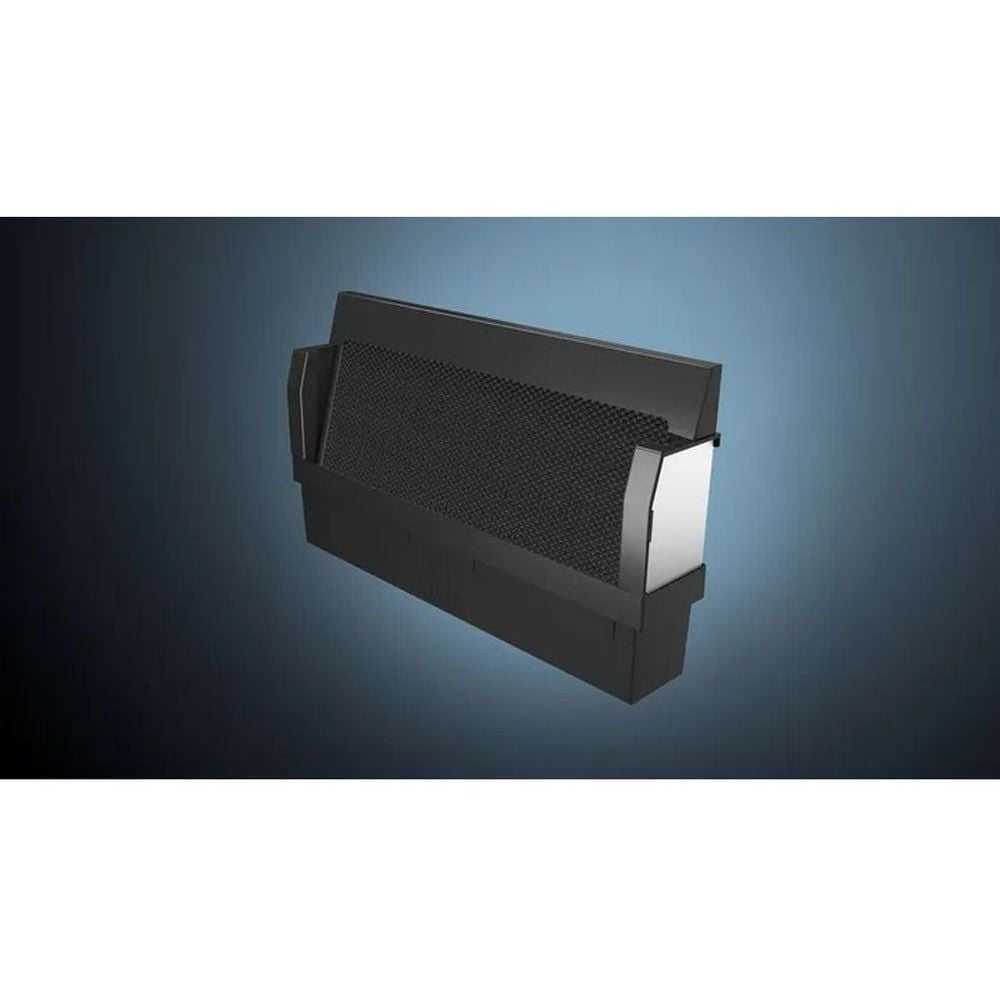

• 2 x metal grease filter cassettes
• Grease and charcoal filter saturation indicators
• The filter service button automatically lifts filters into service position
for easy removal
Design

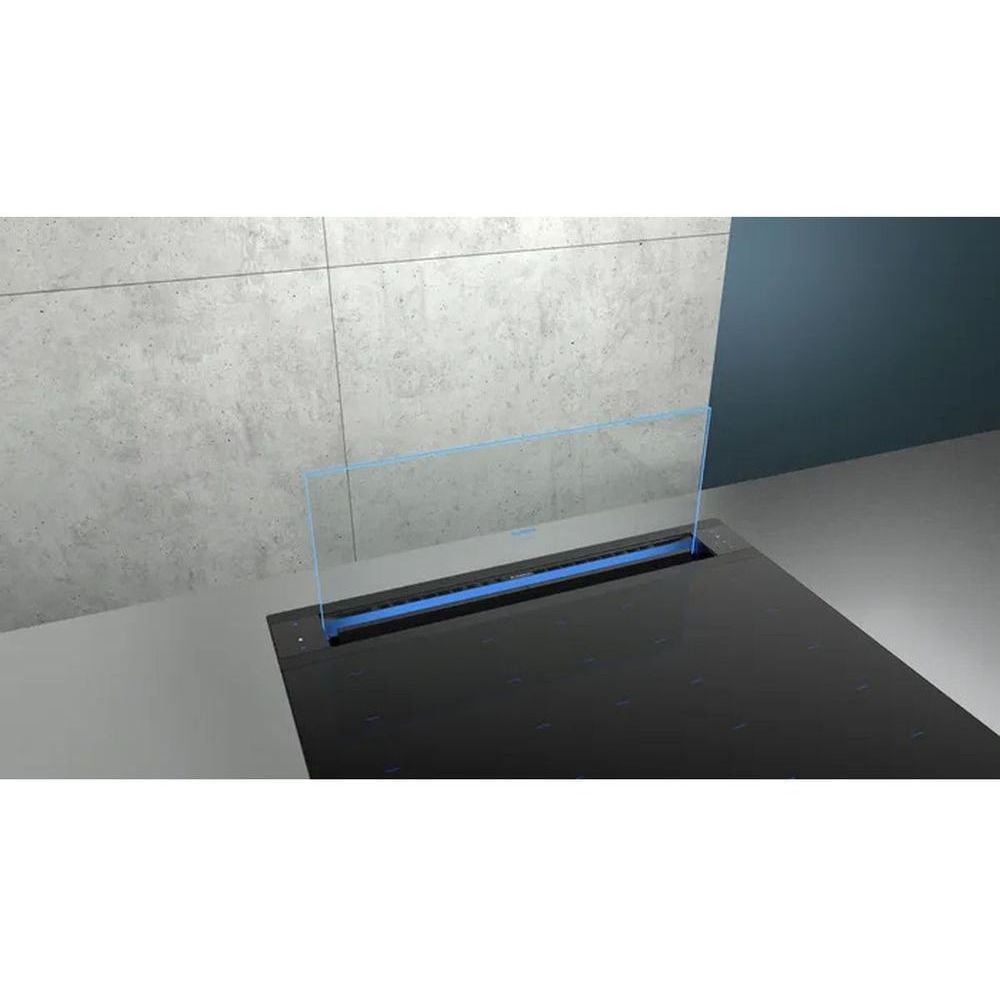

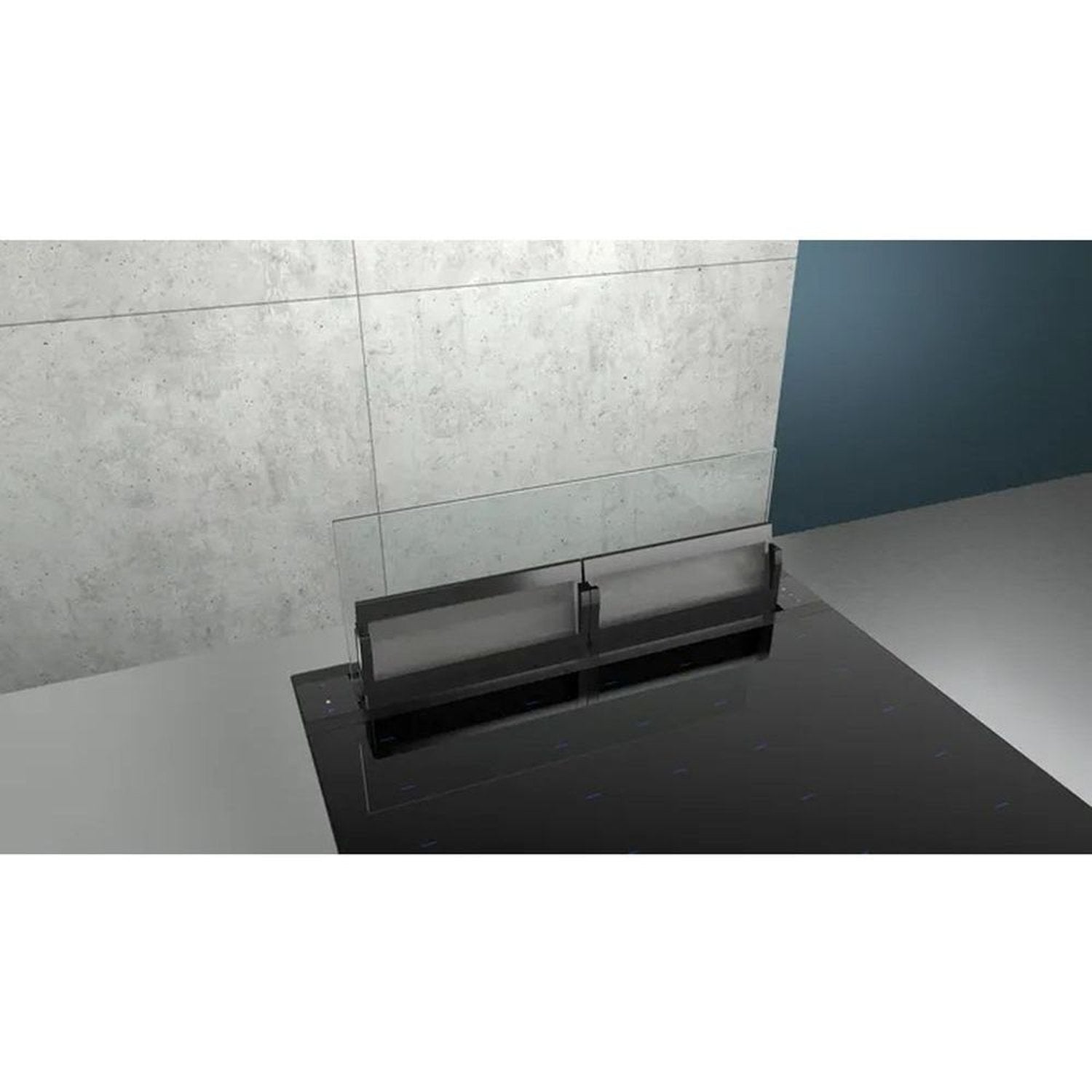

• Extendable clear glass panel with edge lighting
• The glass panel can be easily removed and cleaned
• Installation: integrated

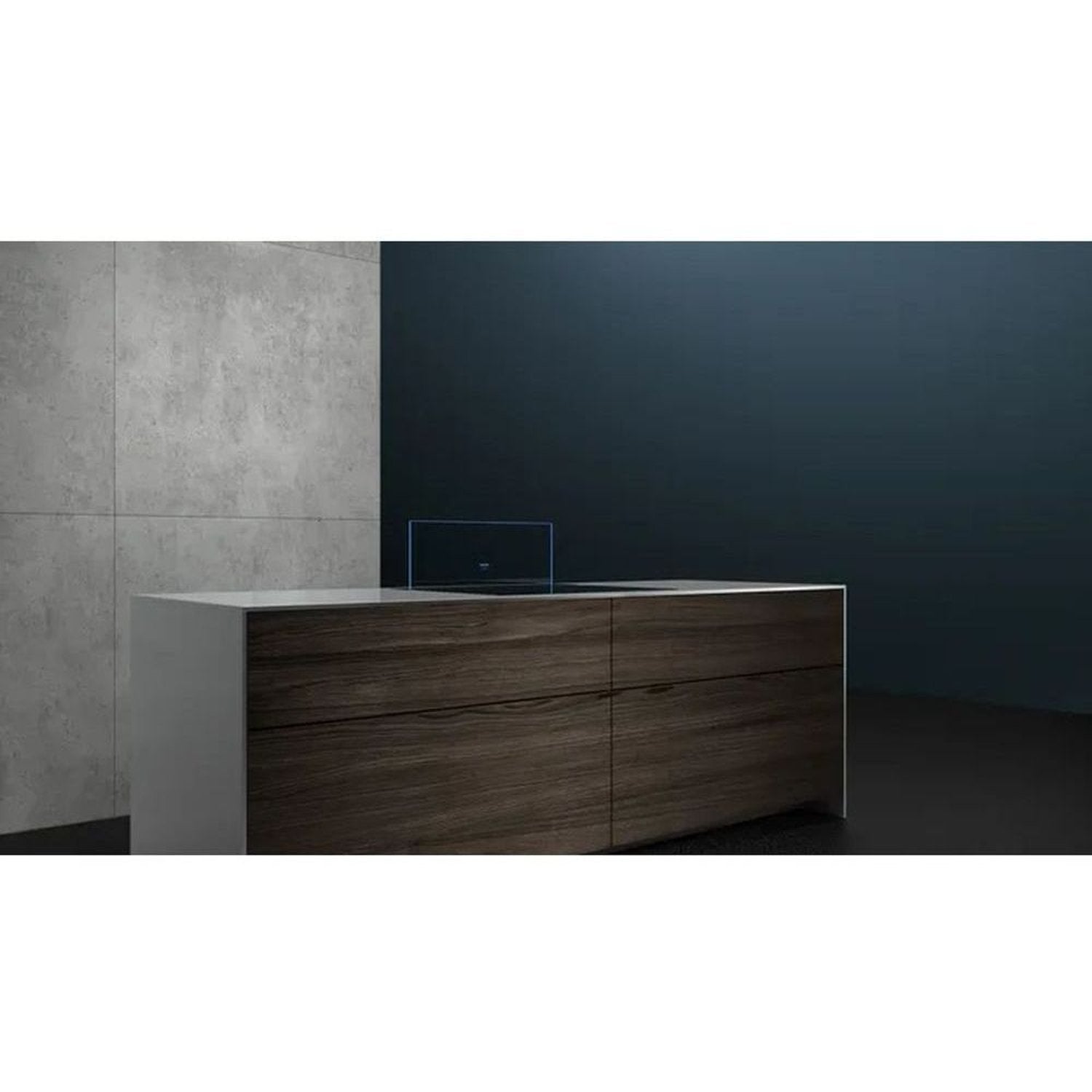

• Suitable for installation in an island or Semi-island kitchen solution
Performance
• Suitable for ducted and re-circulating operation

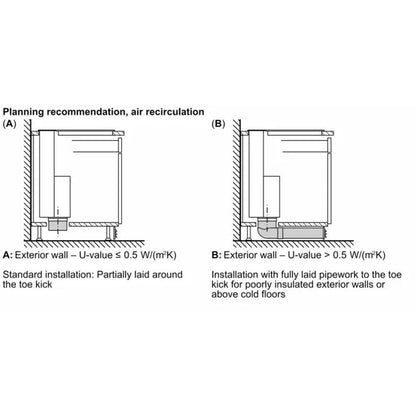

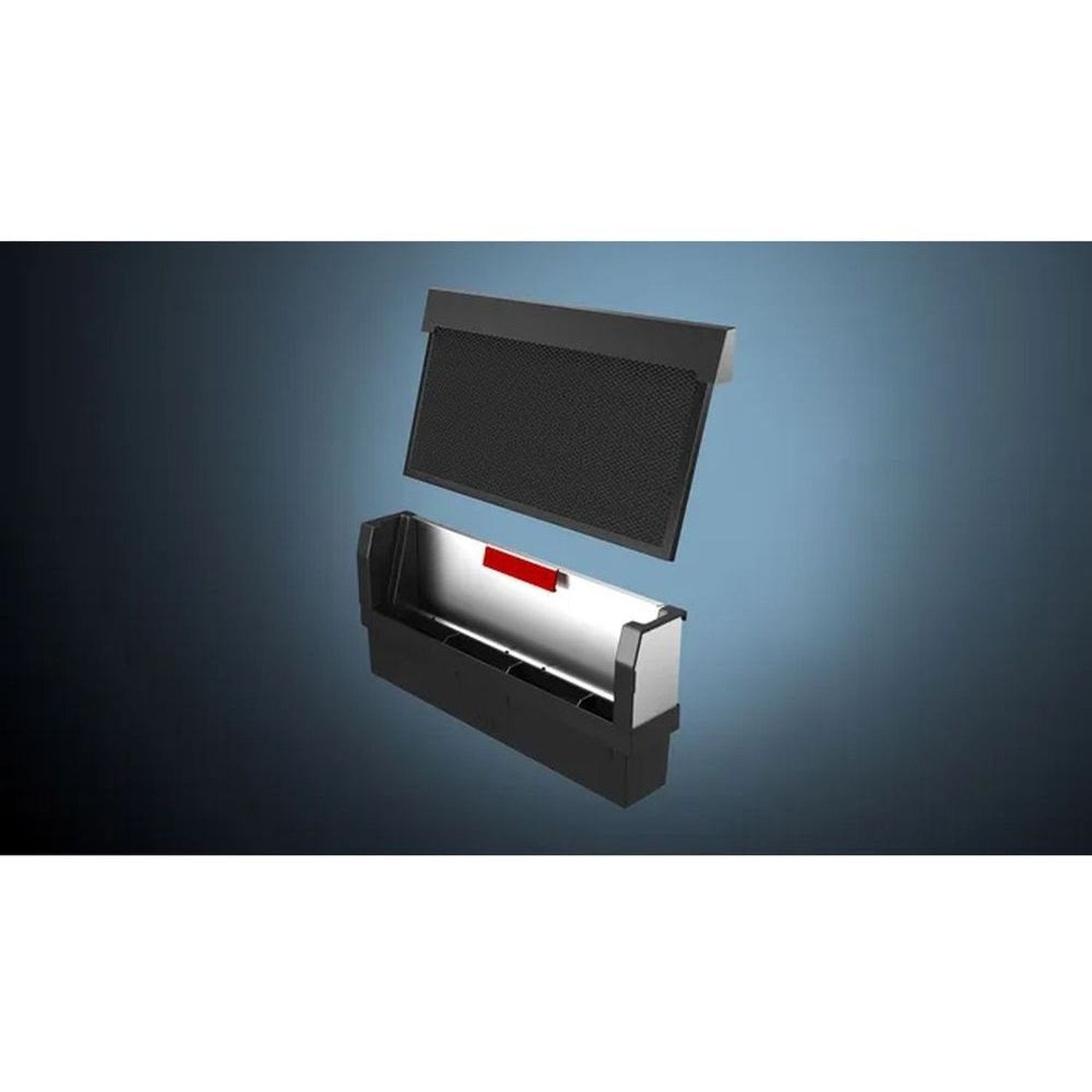

• For recirculated extraction Clean Air Plus recirculation kit (accessory)
needed
• Maximum extraction rate exhaust air 501 m³/h according to EN
61591
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use501m³/h
• Intensive775 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air

• Max. normal use:62dB(A) re 1 pW
• Intensive:70 dB(A) re 1 pW
• Noise level according to EN 60704-3 and EN 60704-2-13 at max.
normal use exhaust air: 62 dB(A) re 1 pW
• With the Clean Air Plus recirculation kit (available as optional
accessory) your appliances reaches:
• Extraction rate in recirculation mode: Max. normal use:416m³/h
• Intensive:525m³/h
• Noise level in recirculation mode: Max. normal use:65dB(A) re 1 pW
• Intensive:70 dB(A) re 1 pW
• Average Energy Consumption: 36.9 kWh/year*
• Blower Efficiency Class: A*
• Lighting Efficiency Class: -*
• Grease Filtering Efficiency Class: B*
• Power rating: 300 W
Planning and installation information

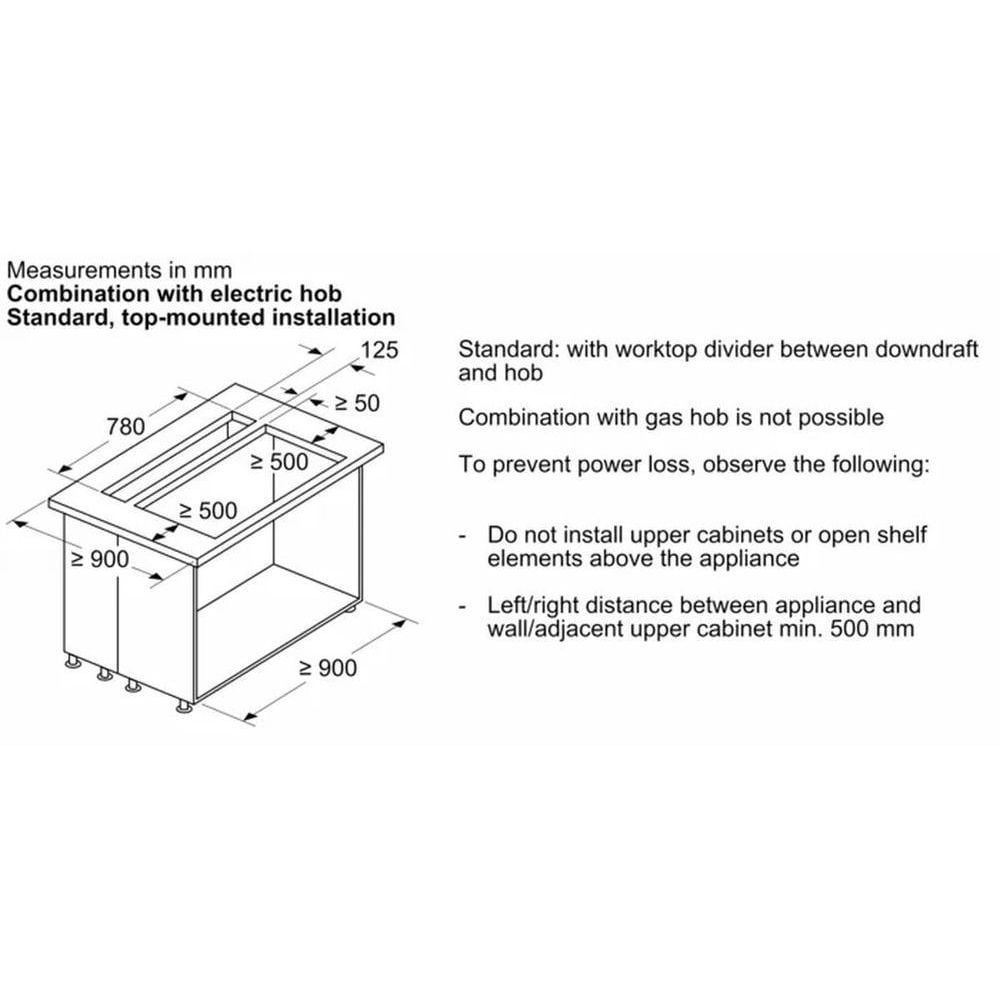

• Not suitable for combination with gas hobs

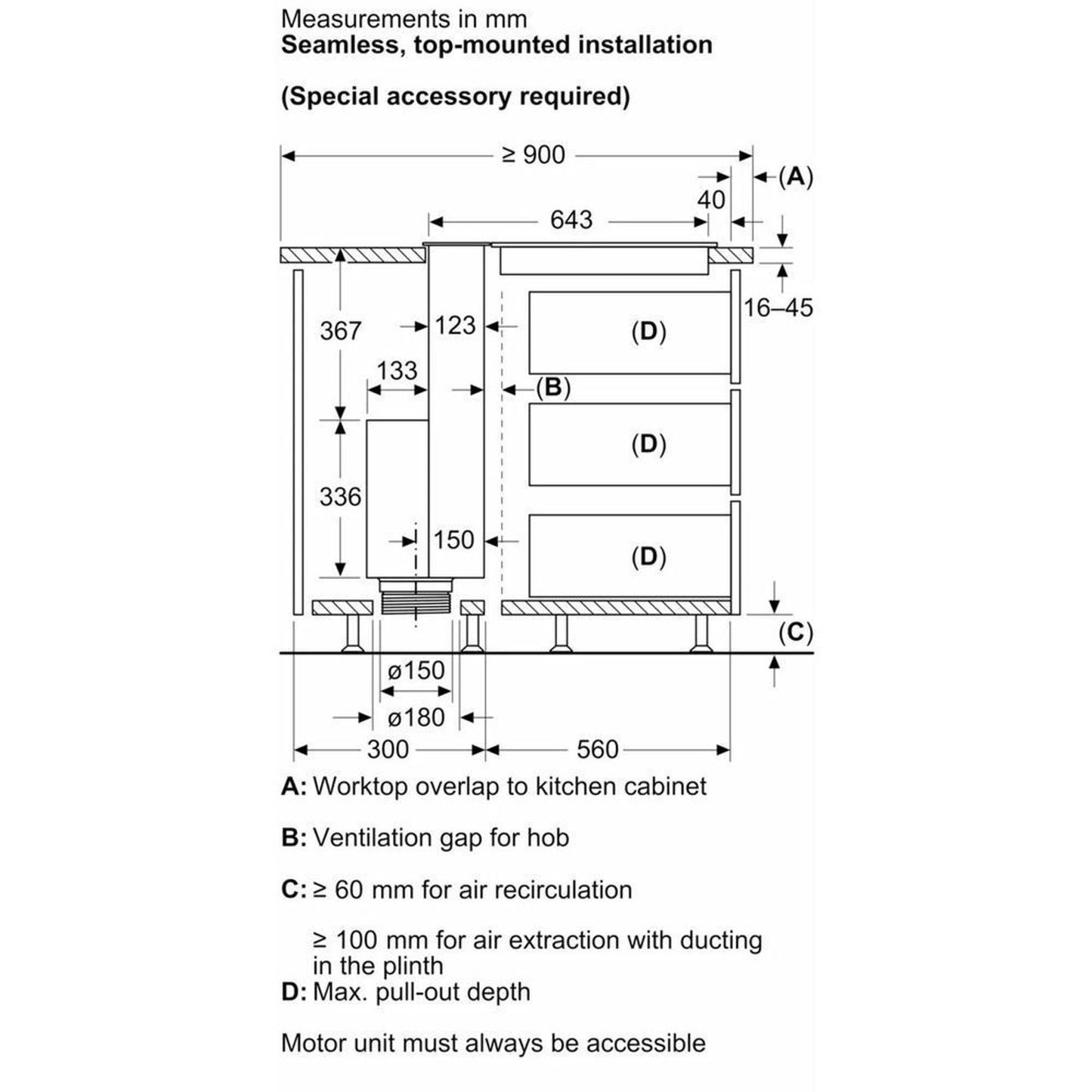

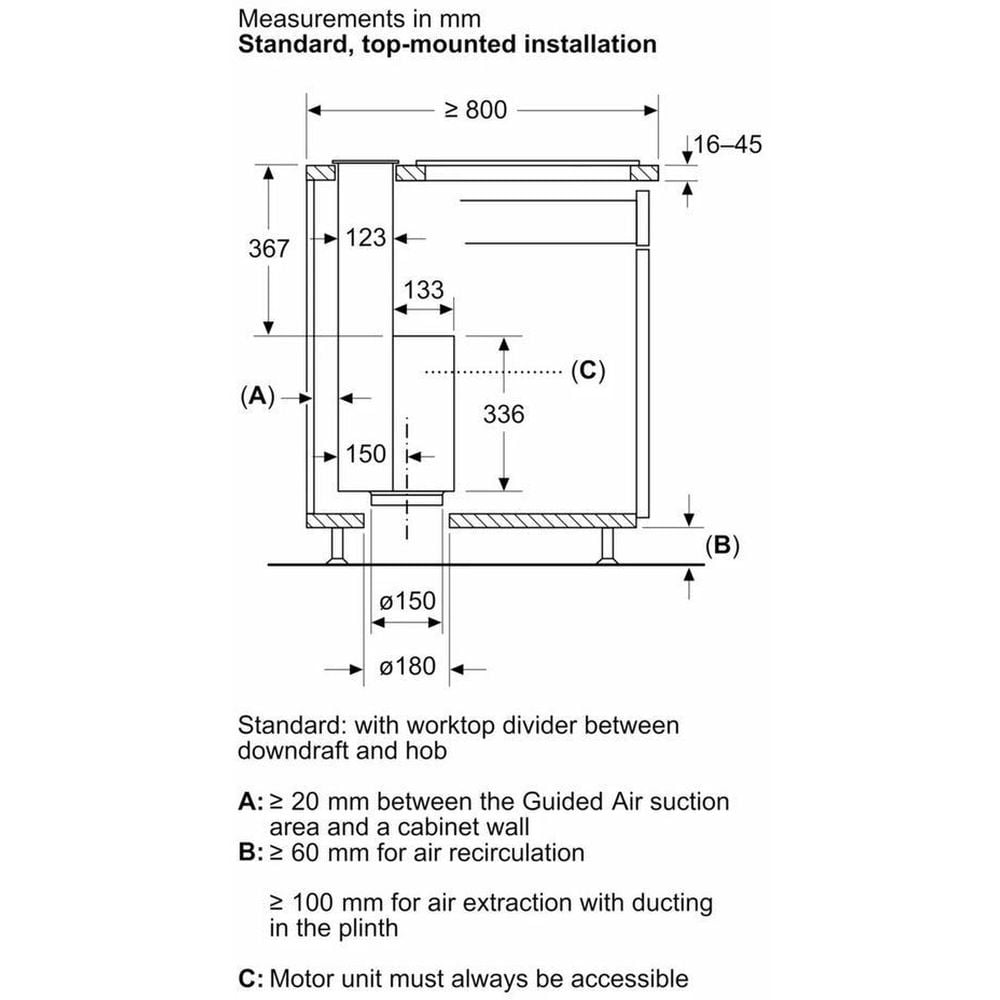

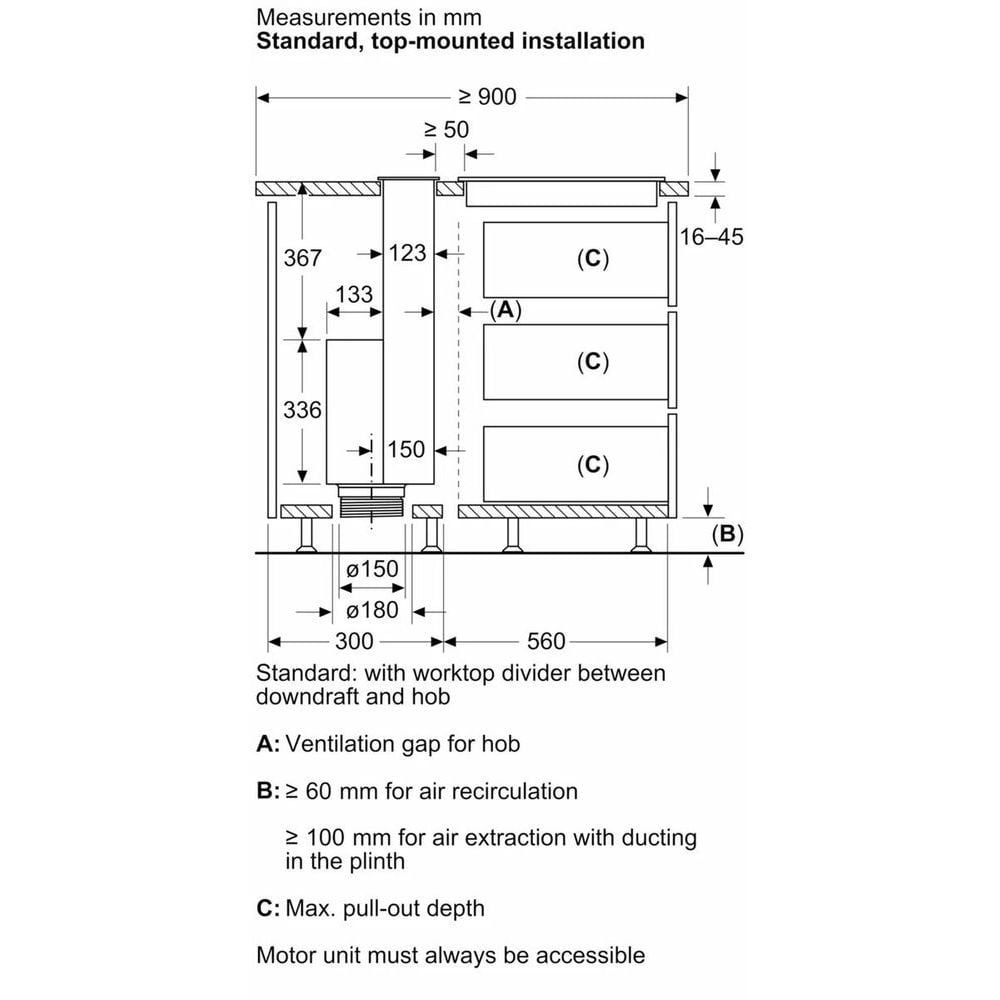

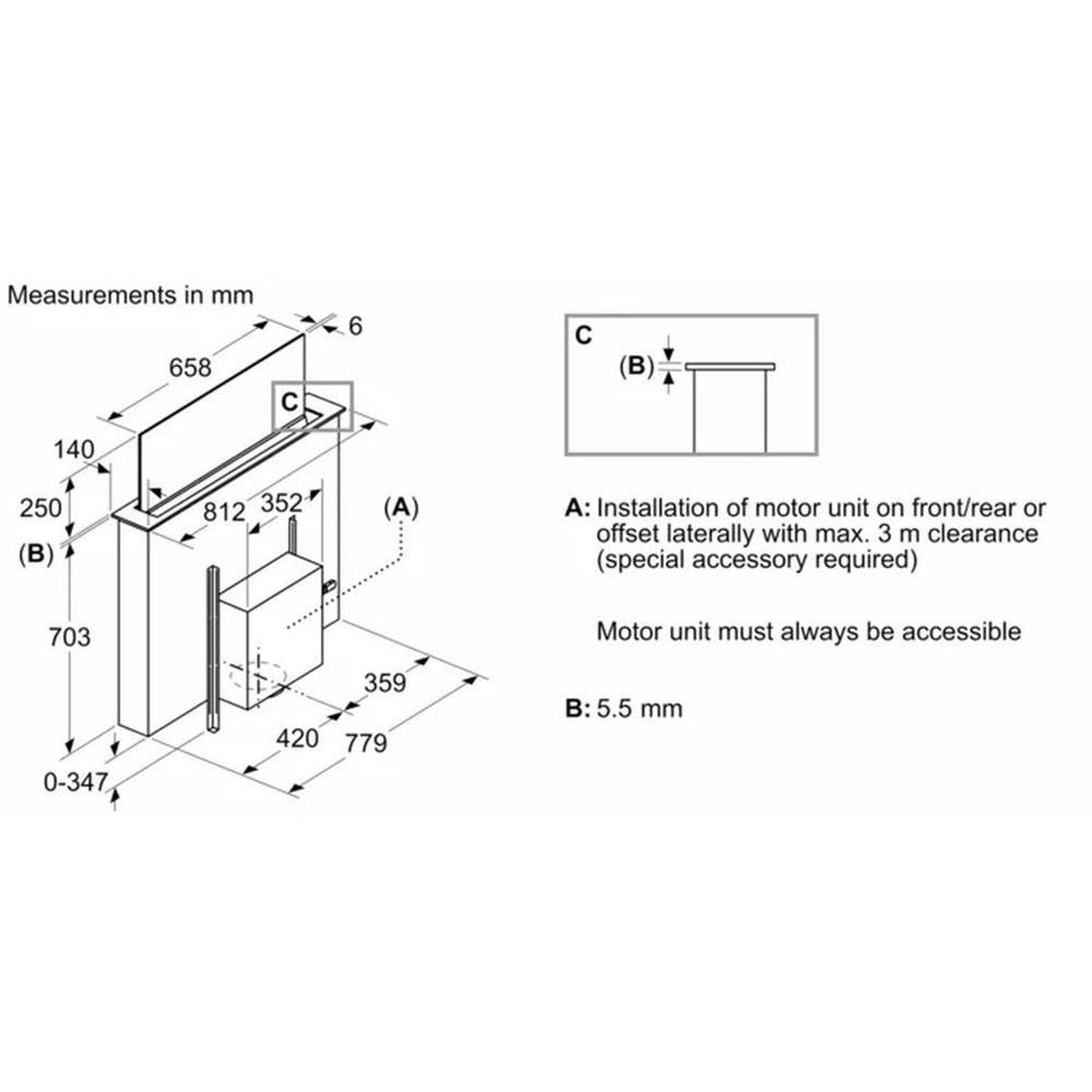

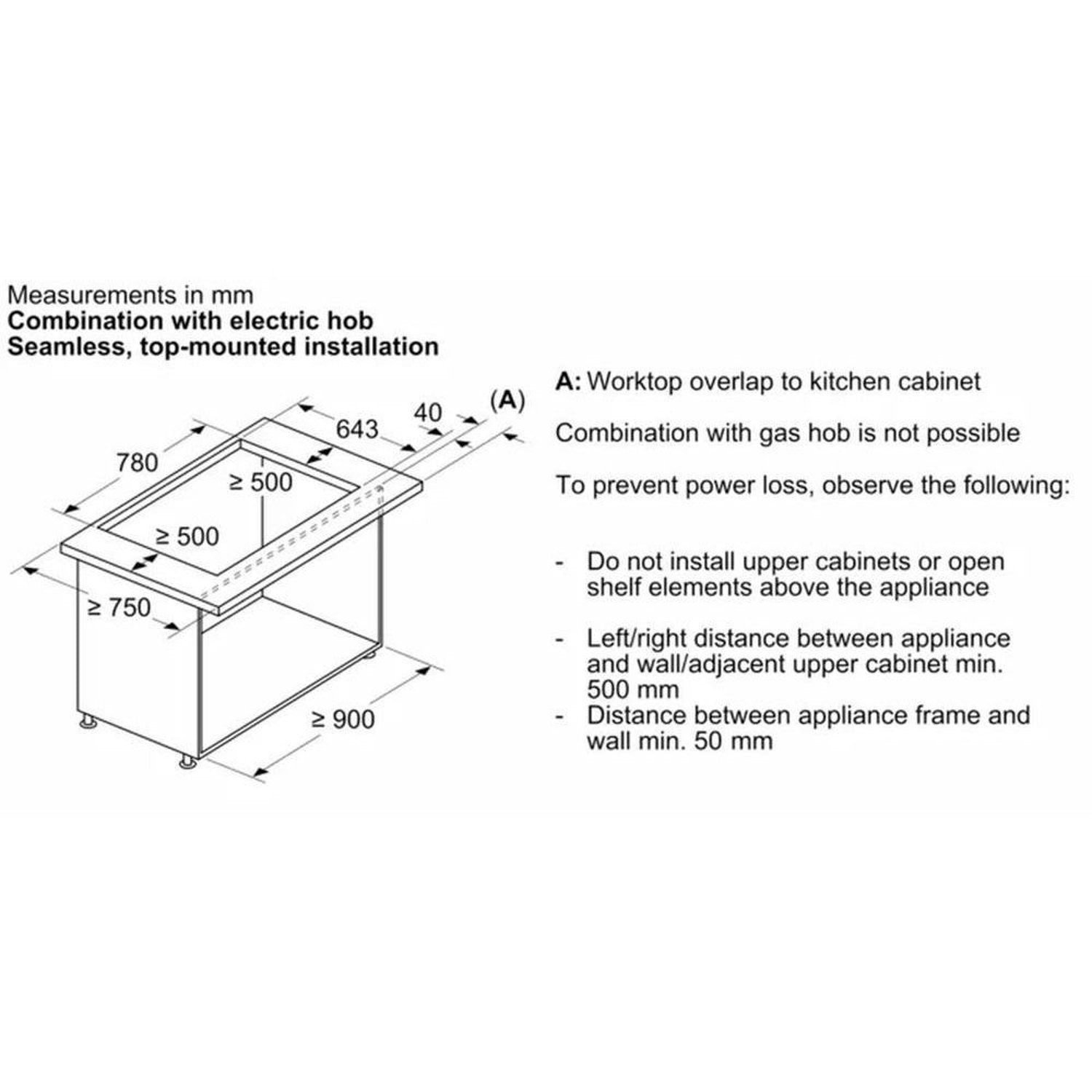

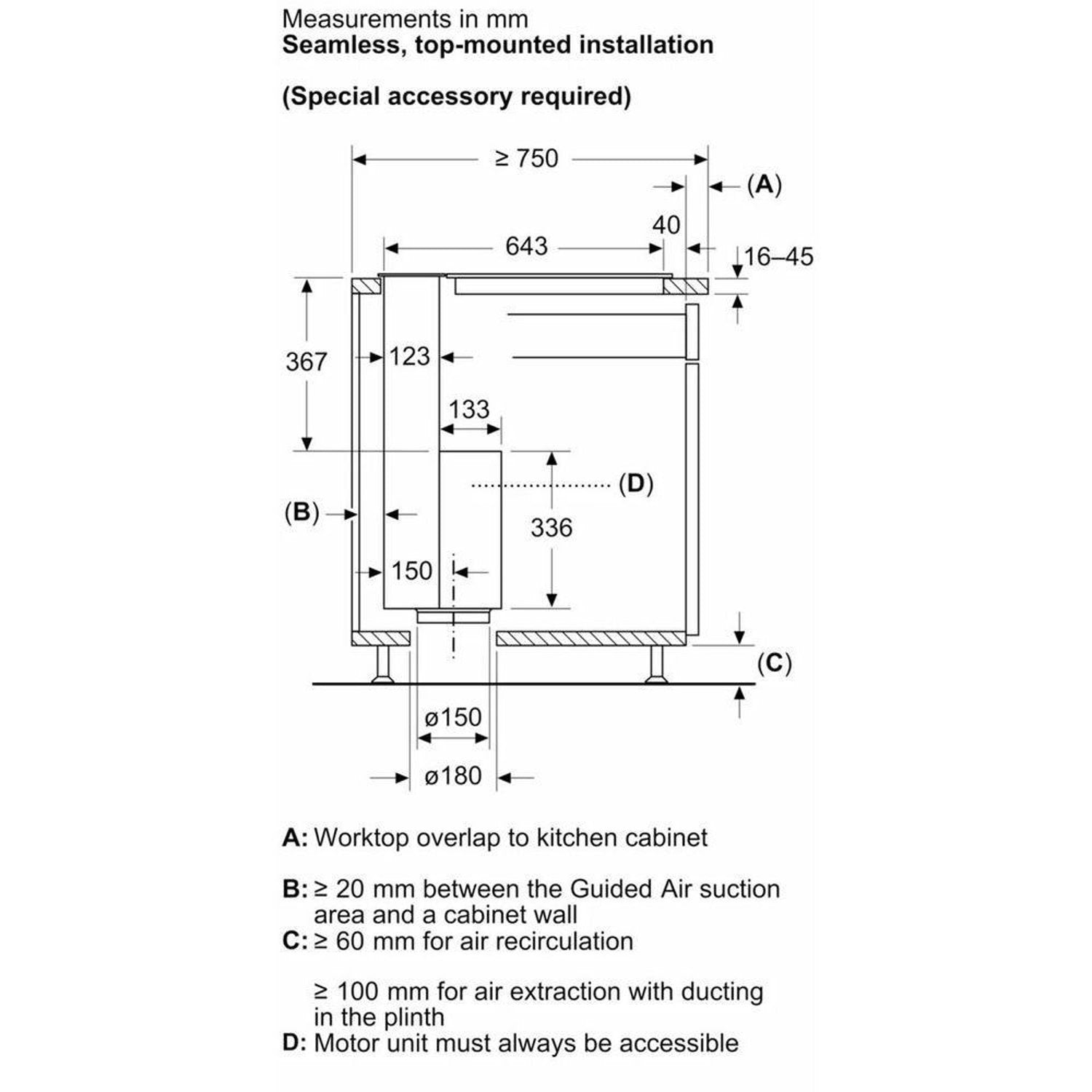

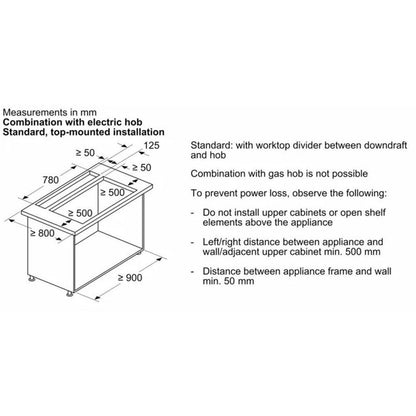

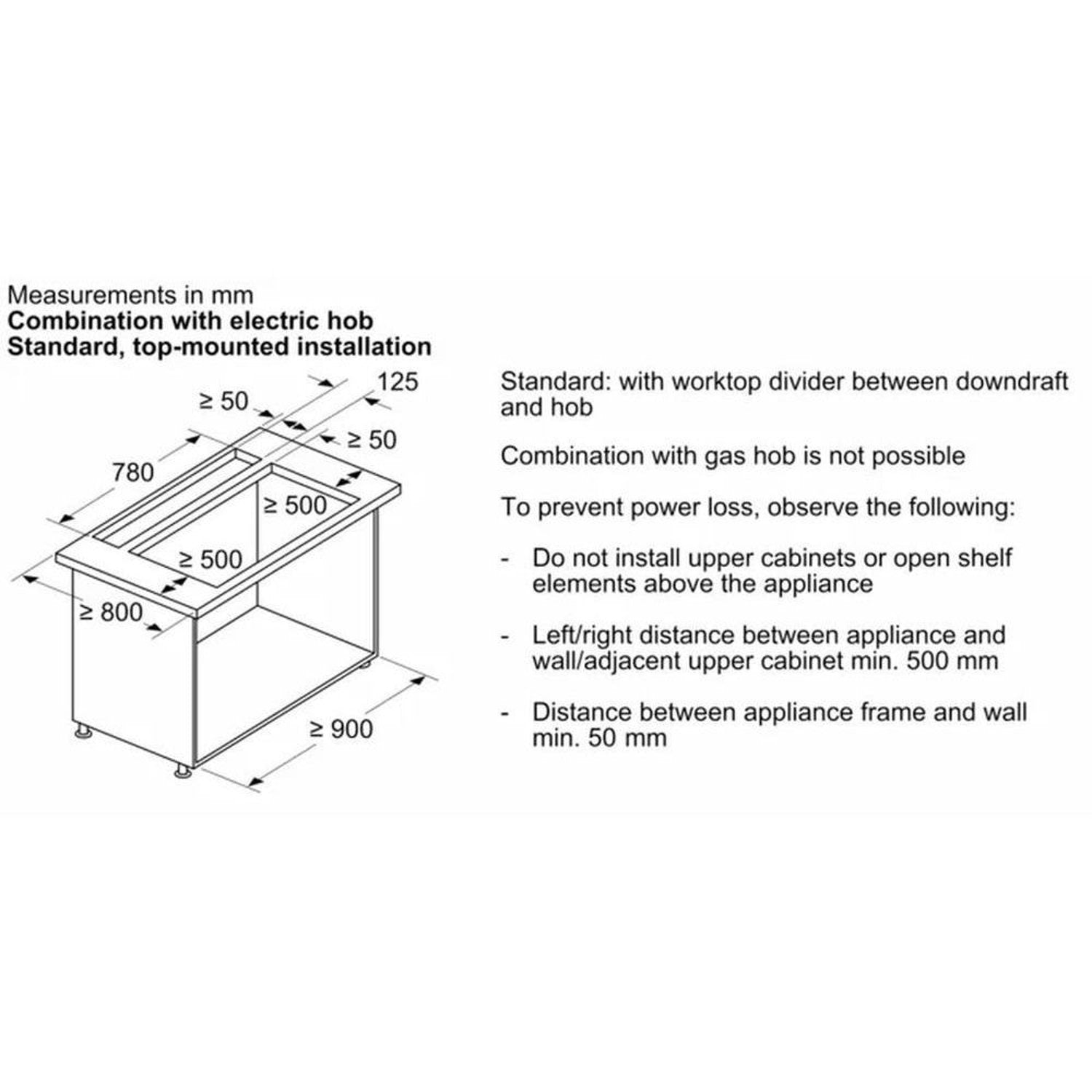

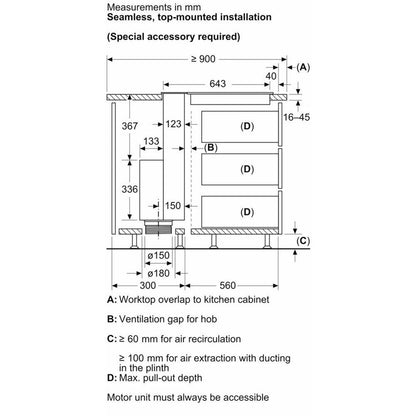

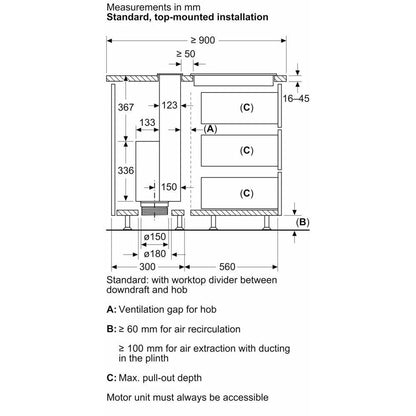

• Please reference the built-in dimensions provided in the installation
drawings
• Extension height 250 mm
• Dimensions (HxWxD): 709 x 812 x 140 mm
• Built-in dimensions (HxWxD): 703 x 781 x 123 mm
• Extractor hose 150 mm
• Electrical cable length 1.3 m
* In accordance with the EU-Regulation No 65/2014

Technical Data
Typology: Downdraft
Length electrical supply cord: 130.0 cm
Required niche size for installation (HxWxD):703mm x
781.0mm x 123mm mm
Height of the appliance: 709 mm
Weight: 38.9 kg
Control panel: Electronic
Number of speed settings: 3-stage + 2 intensive
Maximum output air extraction: 501 m³/h
Boost position output recirculating: 525 m³/h
Maximum output recirculating air: 416 m³/h
Boost position air extraction: 775 m³/h
Maximum Air flow: 501 m³/h
Noise level: 62 dB(A) re 1pW
Diameter of air outlet:150 mm
Grease filter material: Washable stainless steel
EAN code: 4242003881033
Connection Rating: 300 W
Fuse protection:10 A
Nominal power: 220-240 V
Frequency: 50; 60 Hz
Plug type: GB plug
Installation type: Built-in
